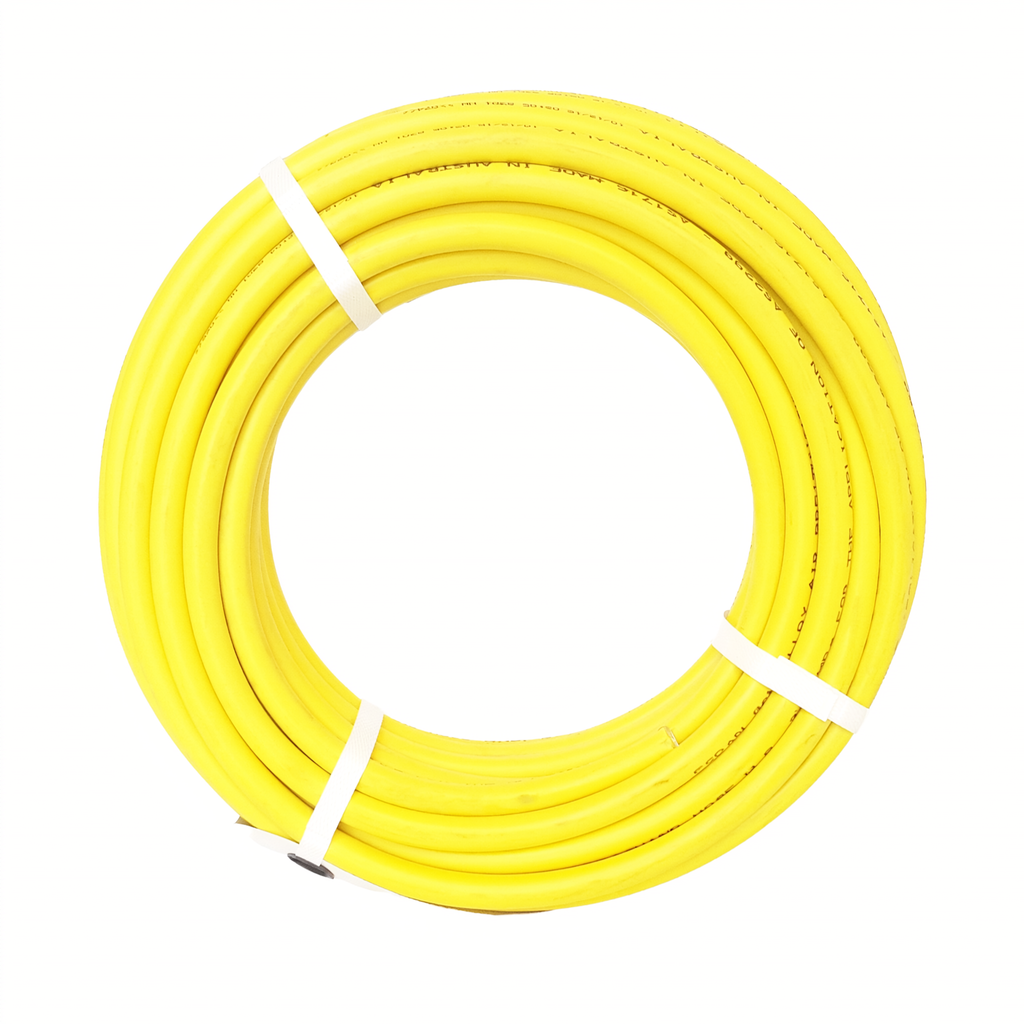

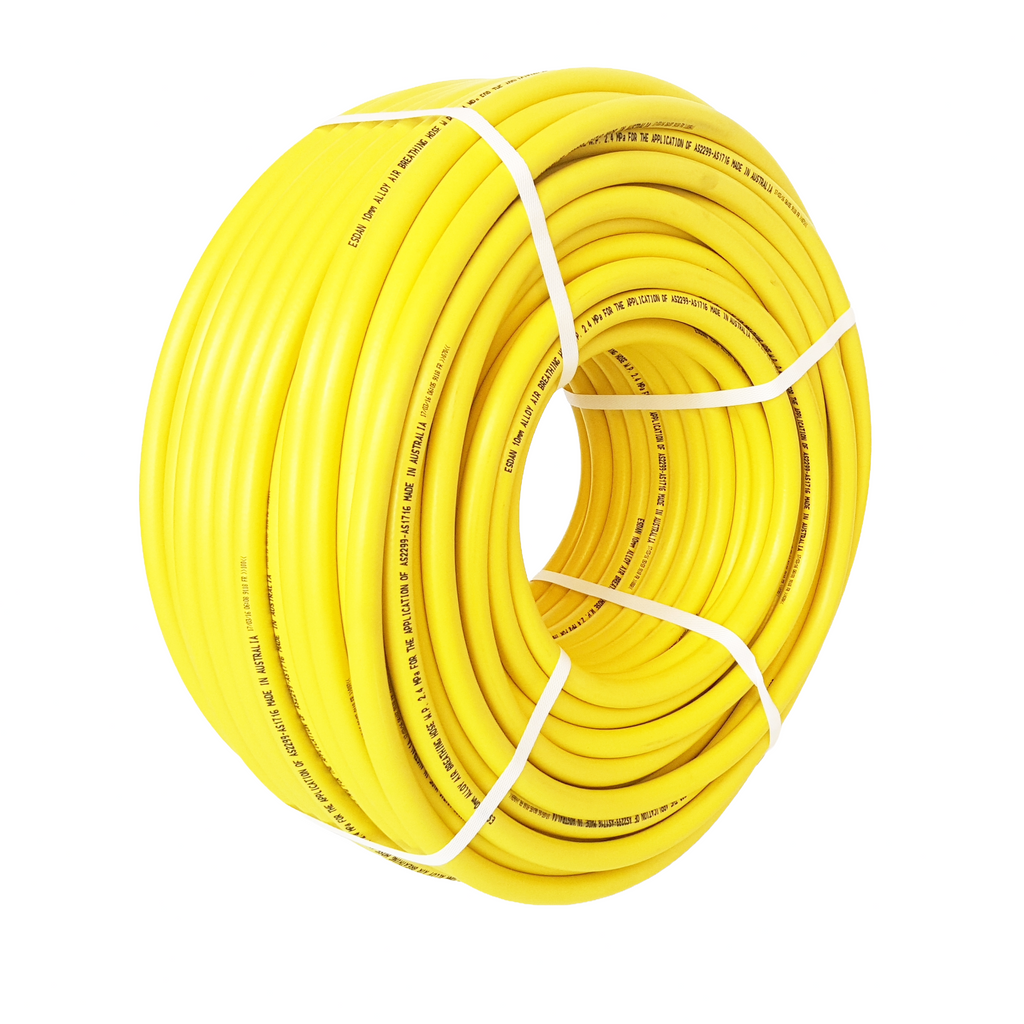

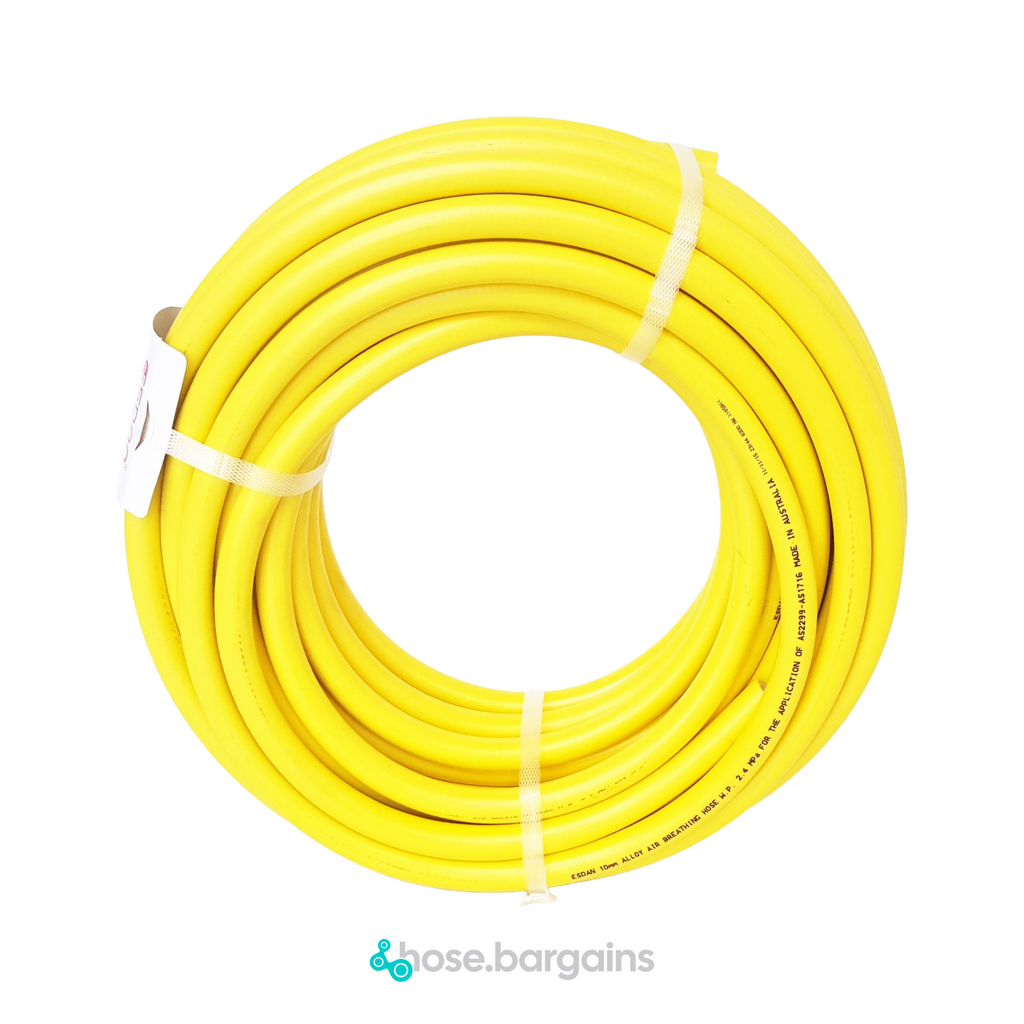

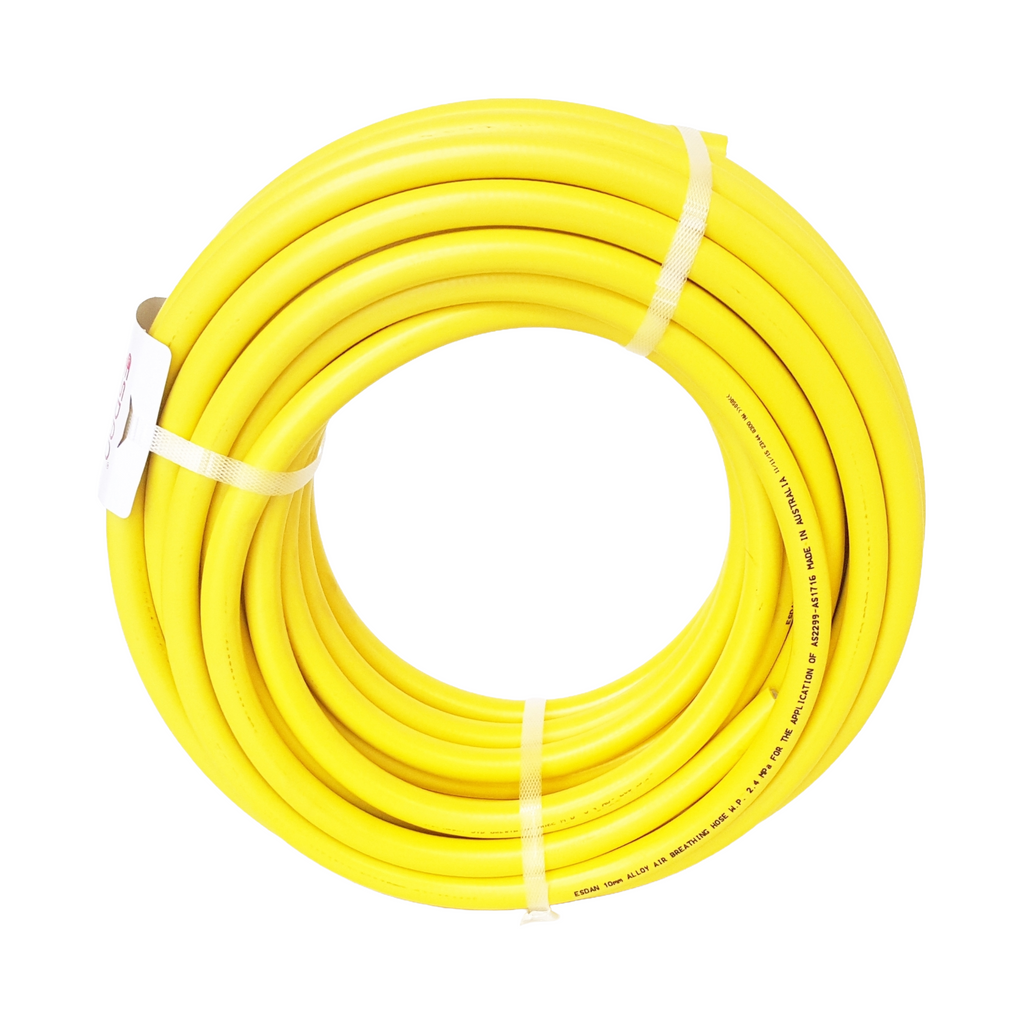

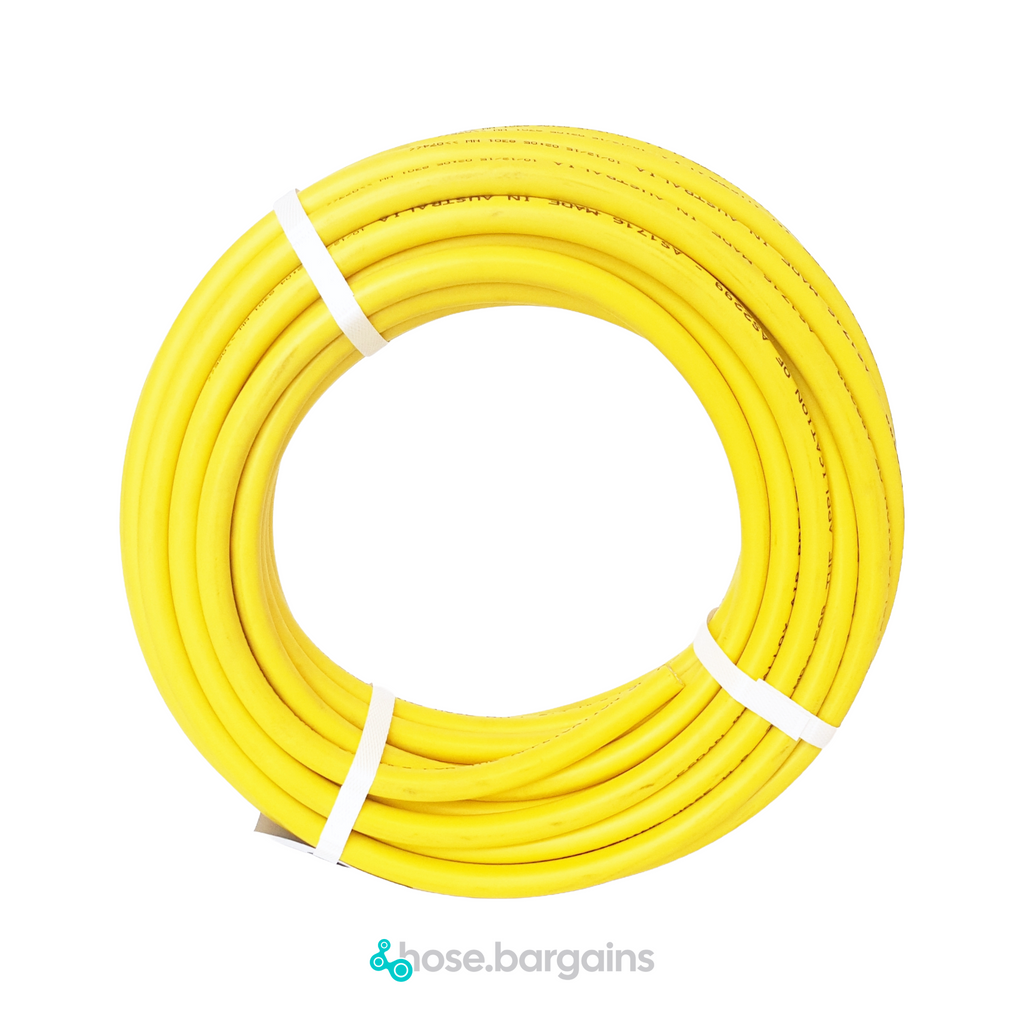

Esdan Oxyflow
Air Breathing Hose
AS 1716 & AS 2299 Certified, 2.4 MPa (348 PSI), Australian Made
High-performance air breathing hose for safe delivery of breathable air in diving and industrial applications
Fast Shipping from Melbourne
Calculate Shipping
If you receive an error from the calculator, please contact us for a manual shipping quote.
60 Day Returns and Refunds
Defective products, incorrect products sent by us, and products lost or damaged in transit: full refund or free replacement
All other returns, including change of mind: refund of purchase price less our shipping costs
2 Year Warranty
2 year warranty provided by the Australian manufacturer, Esdan Plastics Pty Ltd.
Looking to buy a large quantity?
Description
Esdan Oxyflow is a high-performance Australian-made air breathing hose designed for the safe and reliable delivery of clean, non-toxic, low-odour breathable air. Built for demanding industrial and diving applications, it combines high pressure capability, flexibility and durable construction for dependable breathing air supply over long distances.
Applications
Oxyflow air breathing hose is ideal for applications where a safe and dependable supply of breathable air is critical, including:
- Hookah diving systems and surface-supplied diving,
- Spray painting booths and breathing apparatus,
- Sandblasting and abrasive blasting respirators,
- Industrial safety equipment, and
- Confined space breathing air supply systems.

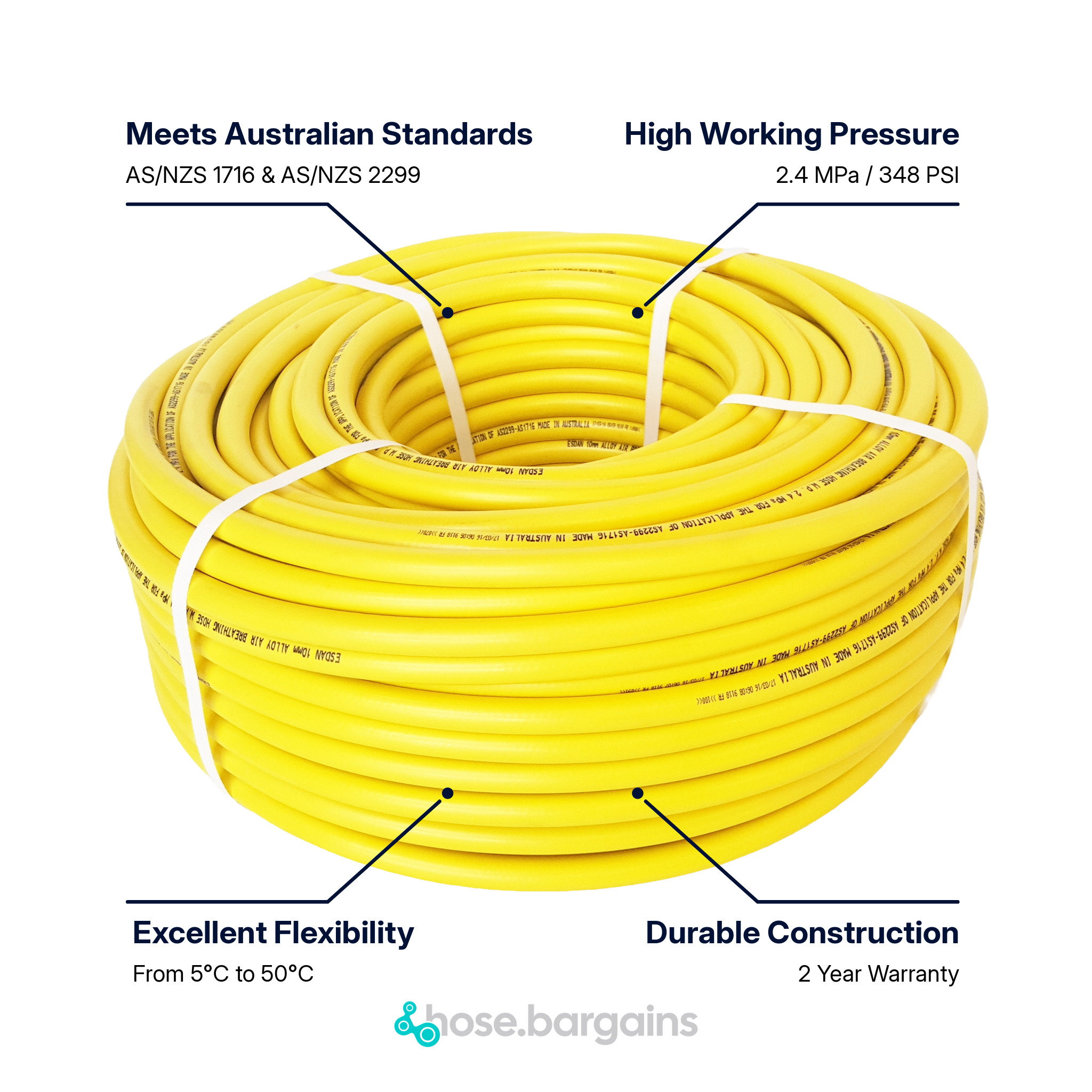

Benefits
Oxyflow provides:
- Compliance with Australian Standards AS/NZS 1716 and AS/NZS 2299 for respiratory protective equipment and occupational diving operations,
- High working pressure of 2.4 MPa (348 PSI) at 23°C, with a 4:1 safety factor for demanding breathing air applications,
- Excellent flexibility across temperatures from 5°C to 50°C, making the hose easier to handle in a wide range of working conditions, and
- Durable Australian-made construction, backed by a 2-year manufacturer warranty for added peace of mind.

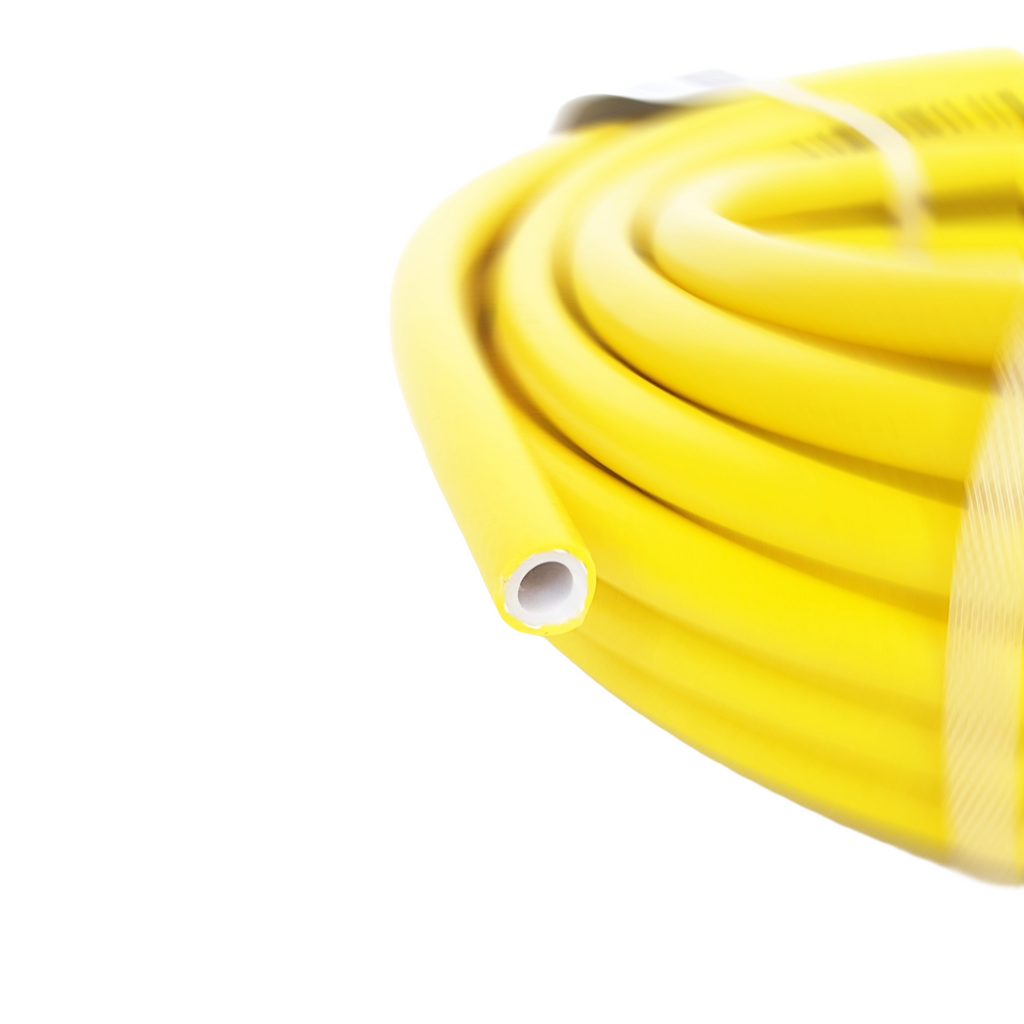

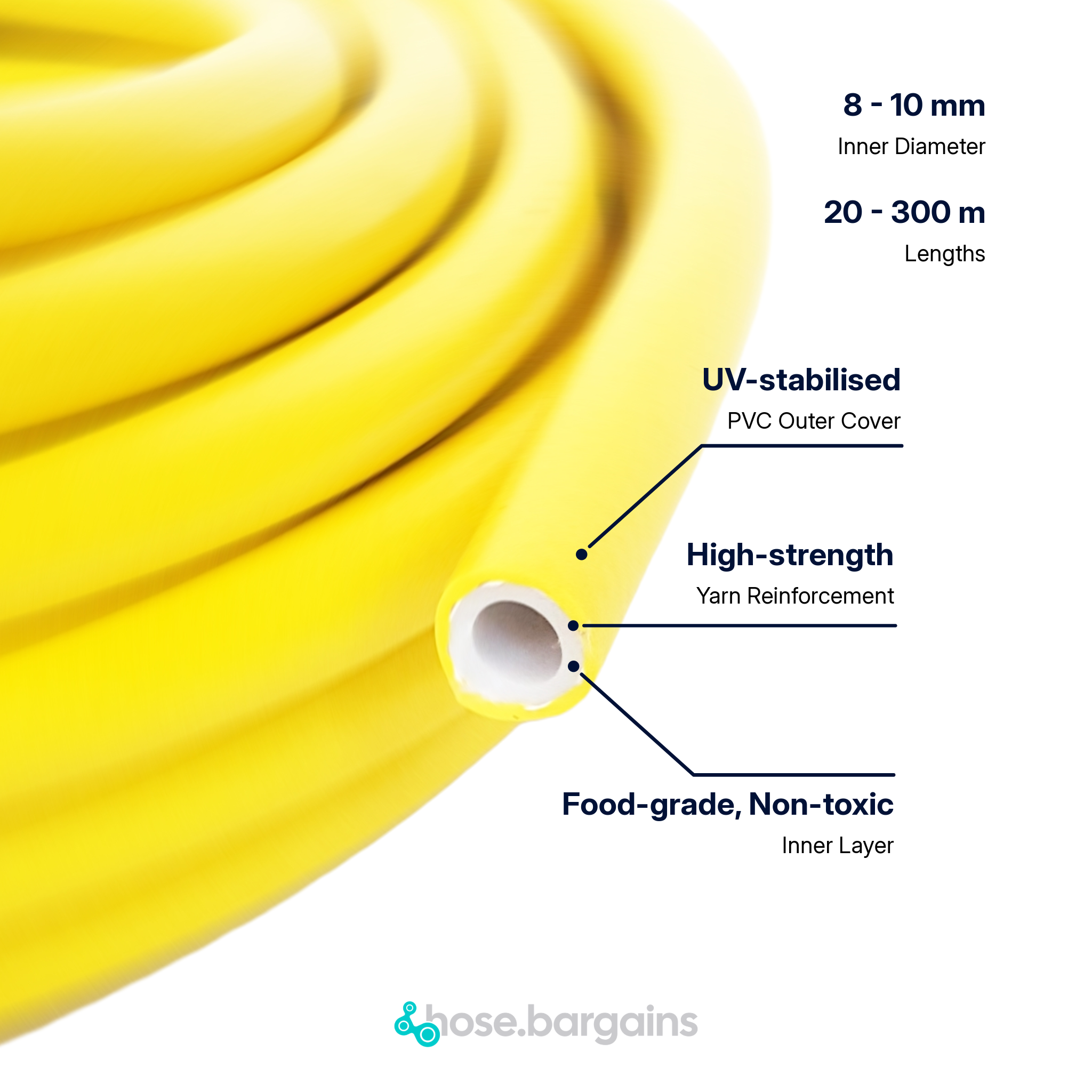

Construction
Oxyflow is manufactured in Australia from high-quality materials selected for safe air delivery, flexibility and long service life. Its construction features:
- A smooth, food-grade PVC inner liner designed for clean, low-odour breathable air delivery,
- High-strength polyester yarn reinforcement for pressure strength and kink resistance, and
- A durable, UV-stabilised yellow PVC outer cover for high visibility and long-term protection in demanding working environments.
It is available in 8 mm (5/16") and 10 mm (3/8") internal diameter sizes, with lengths ranging from 20 to 300 metres.
The wide range of sizes and lengths makes it easy to select the right breathing air hose for your application, including systems requiring safe, reliable air delivery over extended distances.
Specifications
| Inner Diameter | 8 mm (5/16") | 10 mm (3/8") |
|---|---|---|
| Outer Diameter | 14.4 mm | 17.6 mm |
| Bend Radius | 50 mm | 60 mm |
| Weight | 0.18 kg/m | 0.25 kg/m |
| Working Pressure | 2.4 MPa (348 PSI) at 23ºC | 2.4 MPa (348 PSI) at 23ºC |
| Burst Pressure | 9.6 MPa (1392 PSI) at 23ºC | 9.6 MPa (1392 PSI) at 23ºC |
| Working Temperature | 5ºC to 50ºC | 5ºC to 50ºC |
| Standards | AS1716 & AS2299 | AS1716 & AS2299 |
| Material | Food-grade PVC Inner, UV-stabilised PVC Outer | Food-grade PVC Inner, UV-stabilised PVC Outer |
| Reinforcement | High-tenacity Polyester Yarn | High-tenacity Polyester Yarn |
| Colour | Yellow | Yellow |
| Fittings | Unfitted | Unfitted |
| Packaging | 20, 50, 100 m Coil, 300 m Reel | 20, 50, 100 m Coil, 300 m Reel |
| Country of Origin | Australia | Australia |
Measurements listed on this specification table are subject to tolerances.
